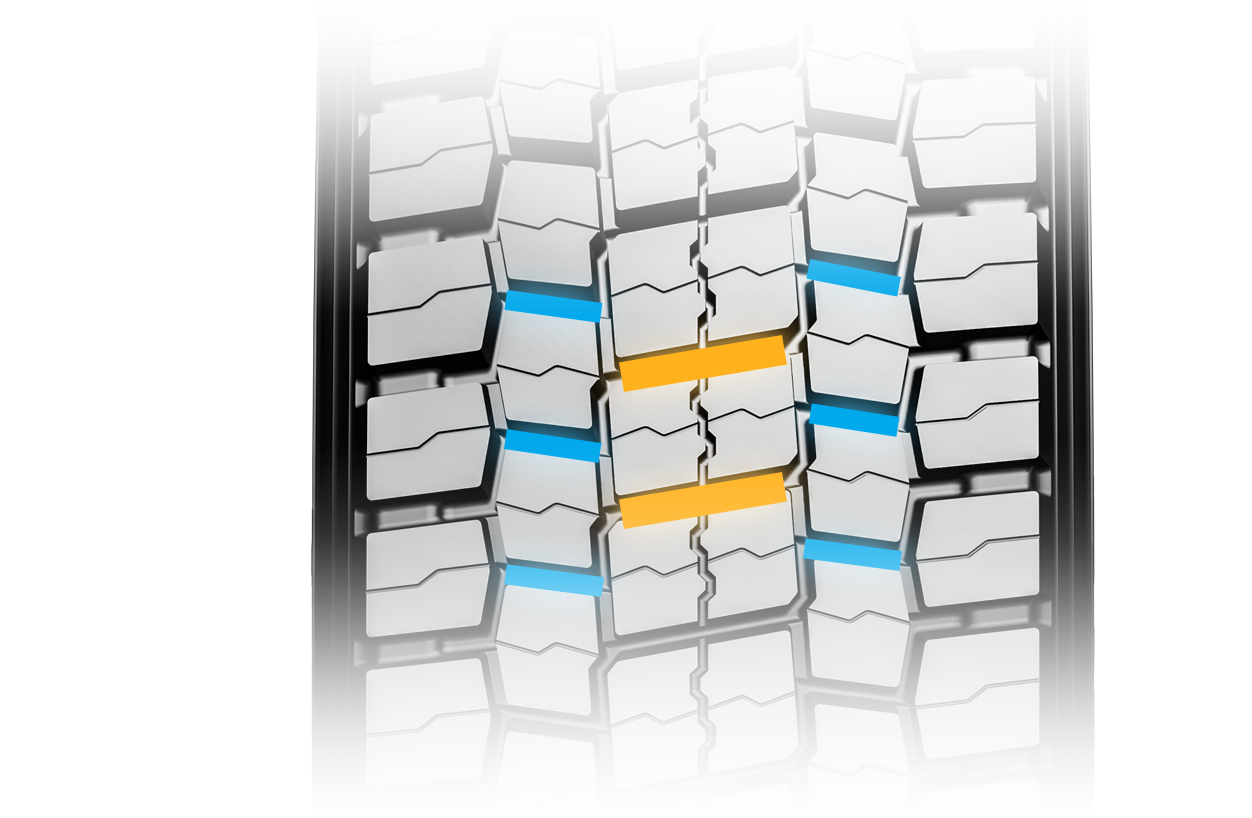

The tie-bars between the pattern blocks help improve tread stability and reduce irregular wear.

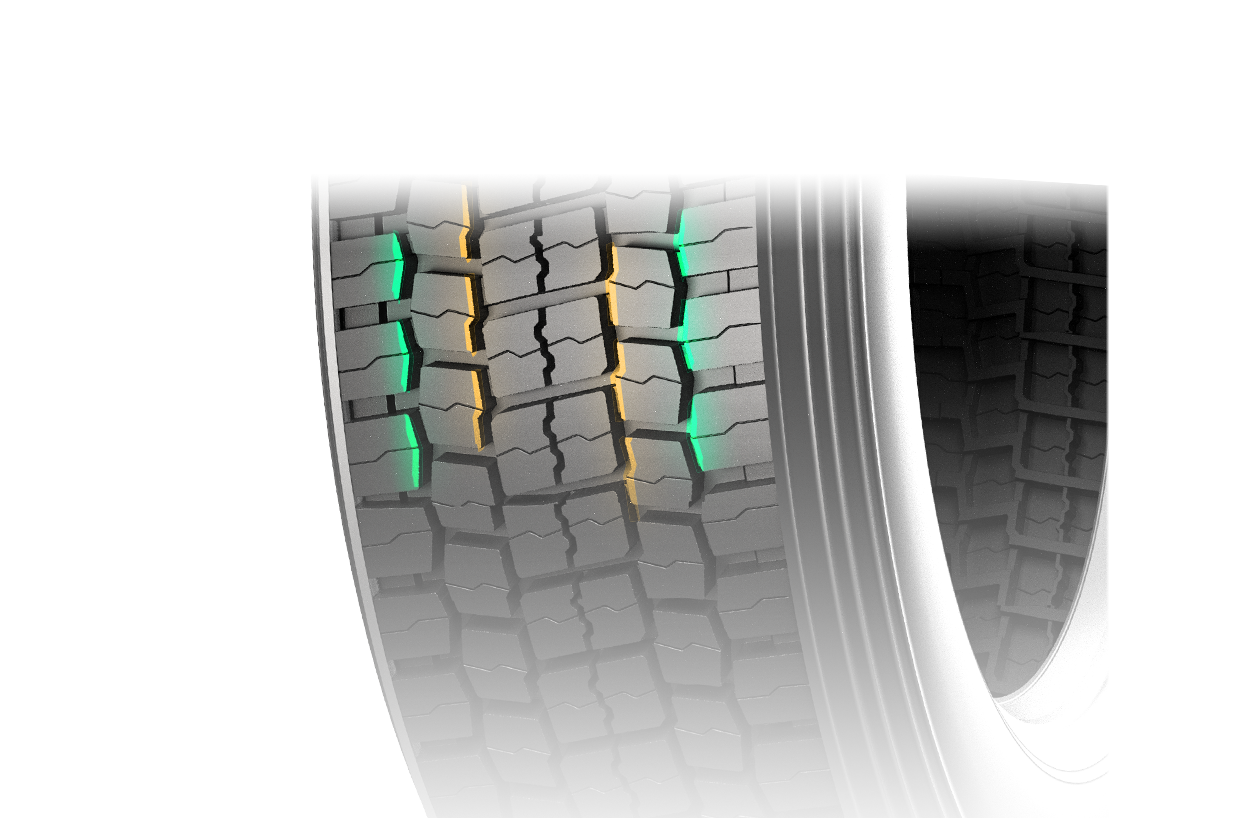

Full depth horizontal grooves can quickly drain water into the main groove,improving the traction performance of the wet.

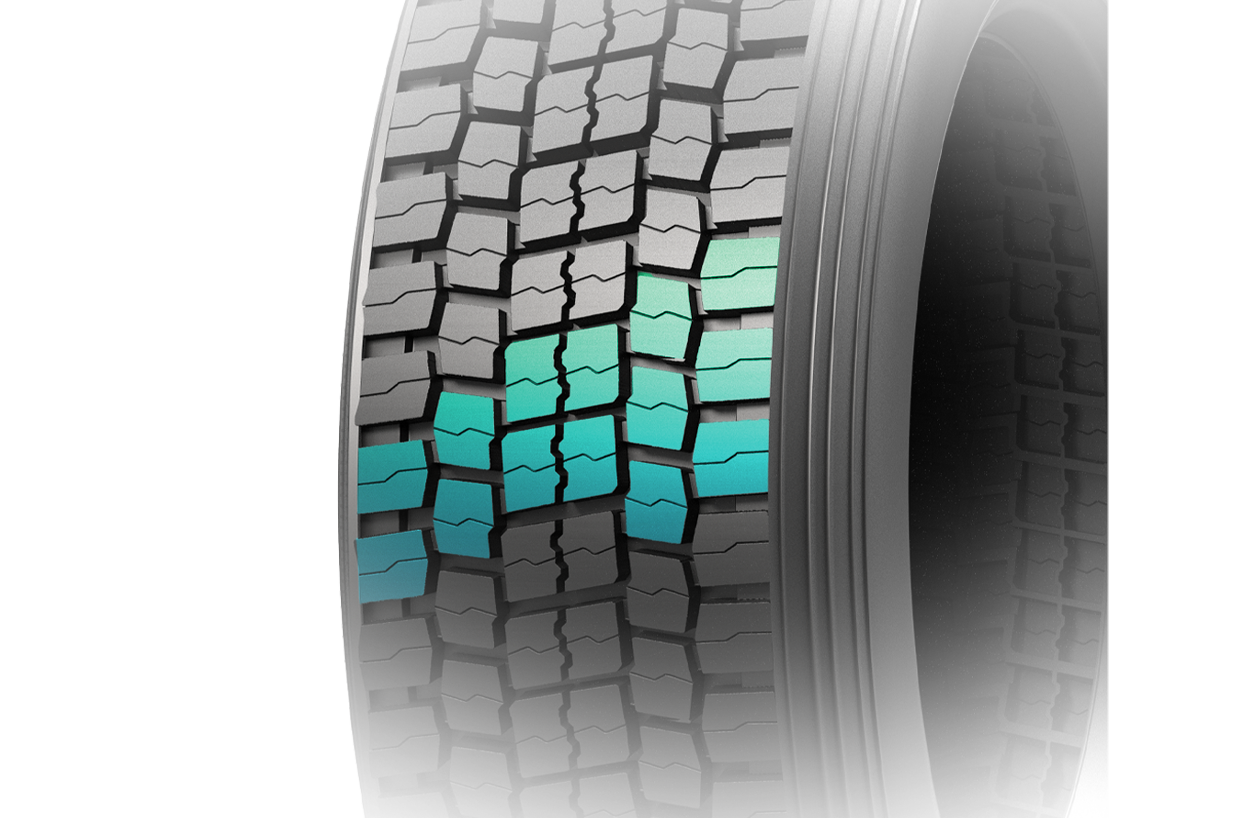

Wide tread and deep main groove provide excellent mileage performance.
Optimized pattern groove angle design improve handing performance.
The tie-bars between the pattern blocks help improve tread stability and reduce irregular wear.
Full depth horizontal grooves can quickly drain water into the main groove,improving the traction performance of the wet.
Wide tread and deep main groove provide excellent mileage performance.
Optimized pattern groove angle design improve handing performance.
INCH | SIZE | PR/LR | LOAD INDEX/SPEED CODE | STANDARD RIM | OVERALL DIA | SECTION WIDTH | LOAD | PRESSURE | O.T.D | TT/TL |
17.5 | 215/75R17.5 | 16 / H | 126/124 M | 6.00 | 773 / 30.4 | 211 / 8.3 | 1700/1600 | 700 / 102 | 15 / 18.9 | TL |
17.5 | 235/75R17.5 | 16 / H | 132/130 M | 6.75 | 799 / 31.5 | 233 / 9.2 | 2000/1900 | 775 / 112 | 16 / 20.2 | TL |
22.5 | 315/60R22.5 | 20 / L | 152/148 L | 9.75 | 950 / 37.4 | 313 / 12.3 | 3550/3150 | 900 / 130 | 18 / 22.7 | TL |
