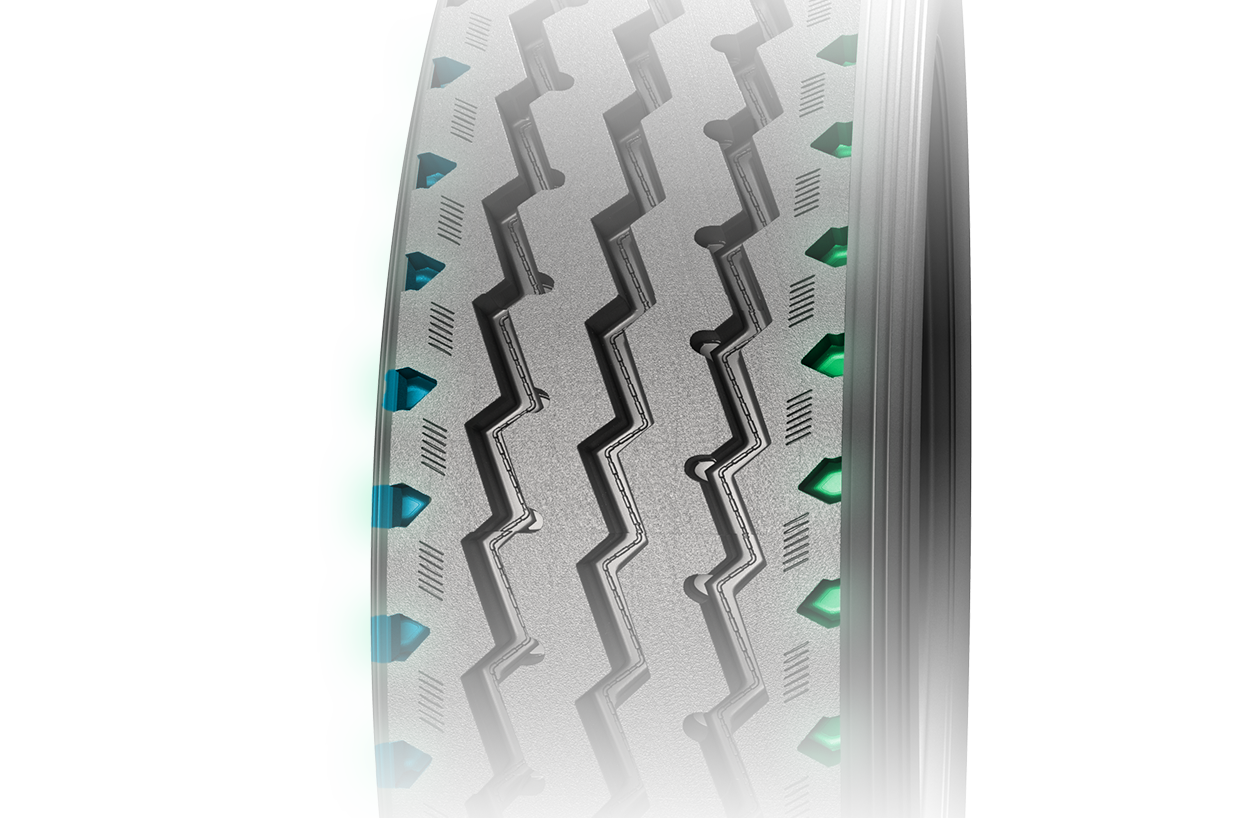

The large and deep shoulder grooves increase traction.

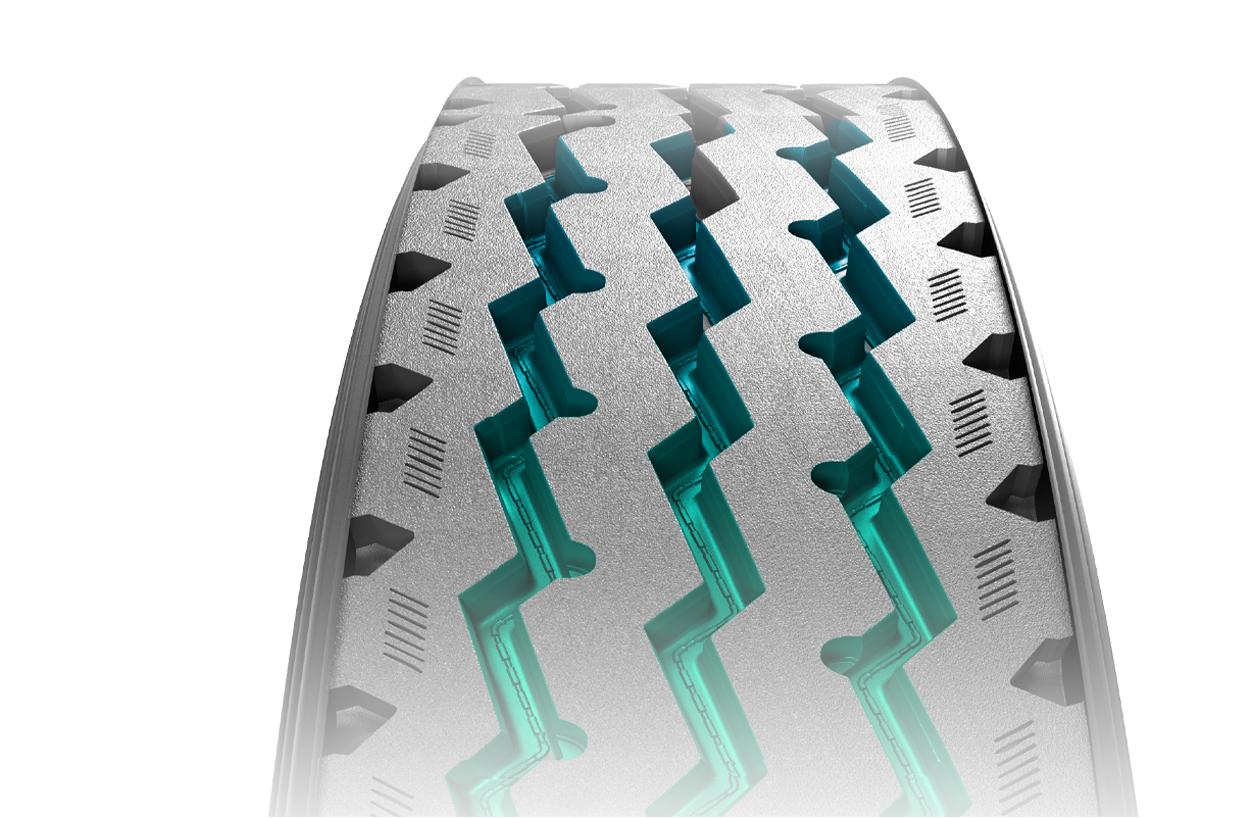

The unique main groove design provides greater grip and traction,as well as improves stability and reduces irregular wear.
The wider running surface and high strength tread formula improve puncture and scrub resistance.
The large and deep shoulder grooves increase traction.
The unique main groove design provides greater grip and traction,as well as improves stability and reduces irregular wear.
The wider running surface and high strength tread formula improve puncture and scrub resistance.
| INCH | SIZE | PR/LR | LOAD INDEX/SPEED CODE | STANDARD RIM | OVERALL DIA | SECTION WIDTH | LOAD | PRESSURE | O.T.D | TT/TL |
| 22.5 | 13R22.5 | 20 / L | 156/150 K | 9.75 | 1118 / 44.0 | 300 / 12.6 | 4000/3350 | 875 / 127 | 18 / 22.7 | TL |
| 22.5 | 315/80R22.5 | 20 / L | 156/150 K | 9.00 | 1076 / 42.4 | 312 / 12.3 | 4000/3350 | 850 / 123 | 15.9 / 20.0 | TL |
| 24 | 12.00R24 | 20 / L | 160/157 K | 8.5 | 1228 / 48.4 | 315 / 12.4 | 4500/4125 | 900 / 130 | 17 / 21.4 | TT |
| 24 | 325/95R24 | 22 / M | 162/160 K | 9.00 | 1228 / 48.4 | 325 / 12.8 | 4750/4500 | 850 / 123 | 17 / 21.4 | TT |
